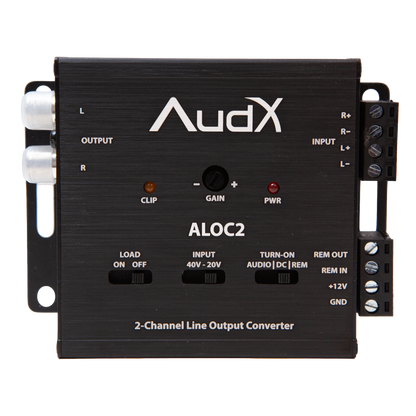

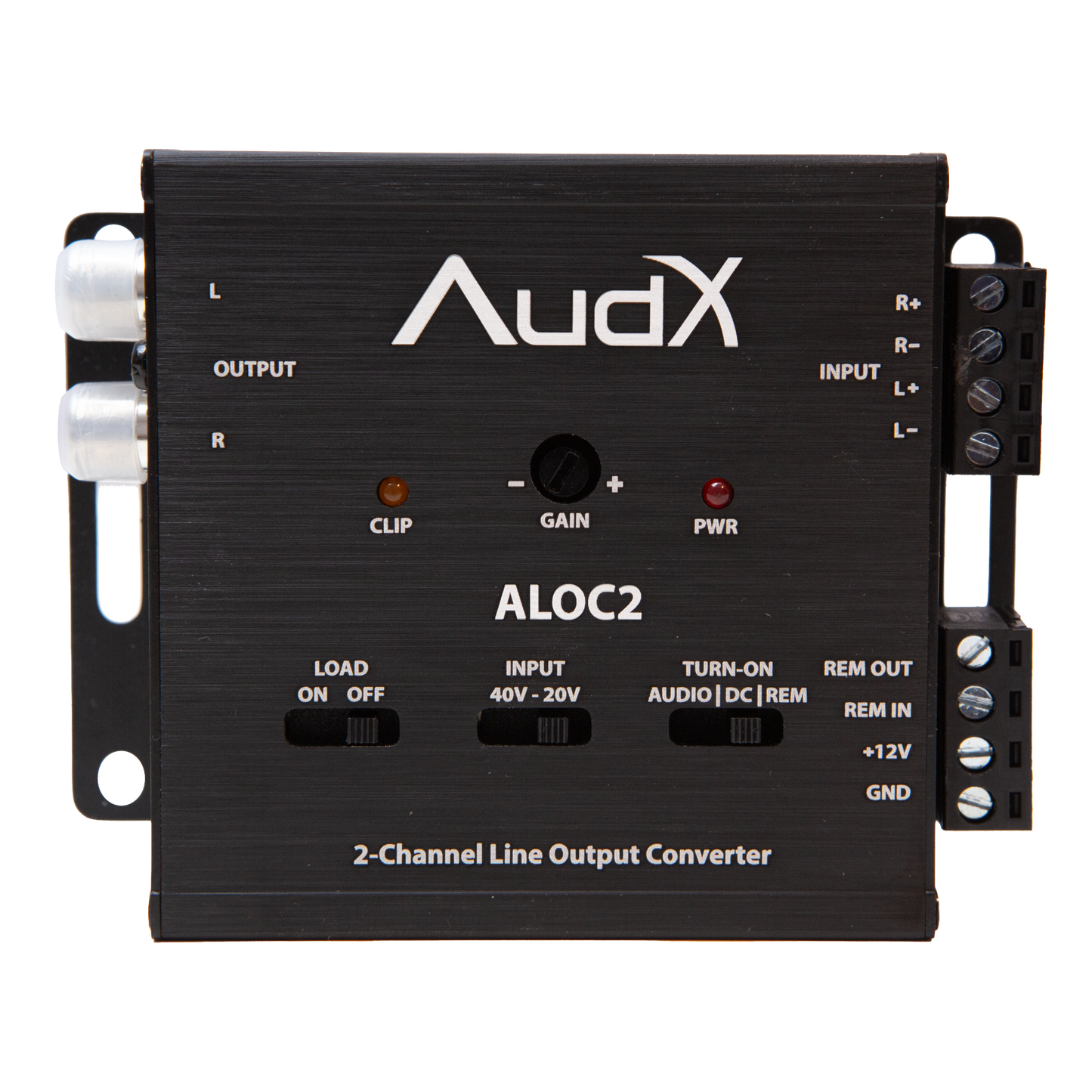

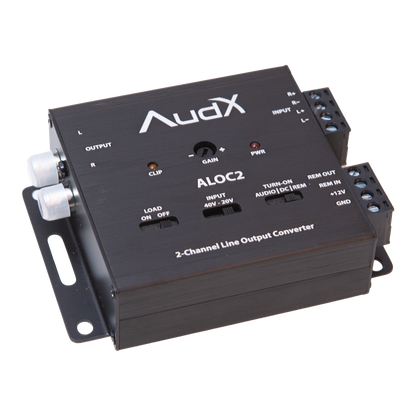

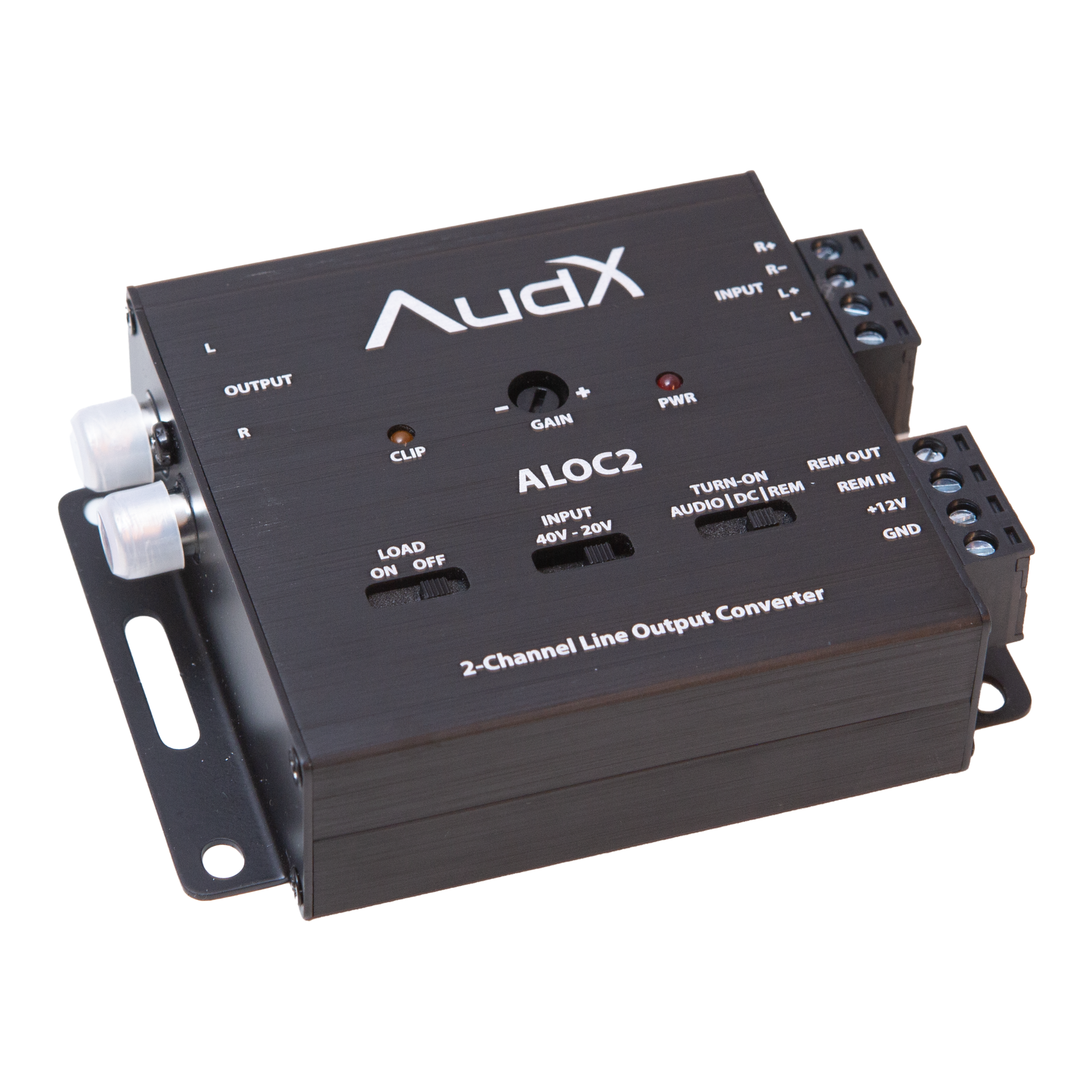

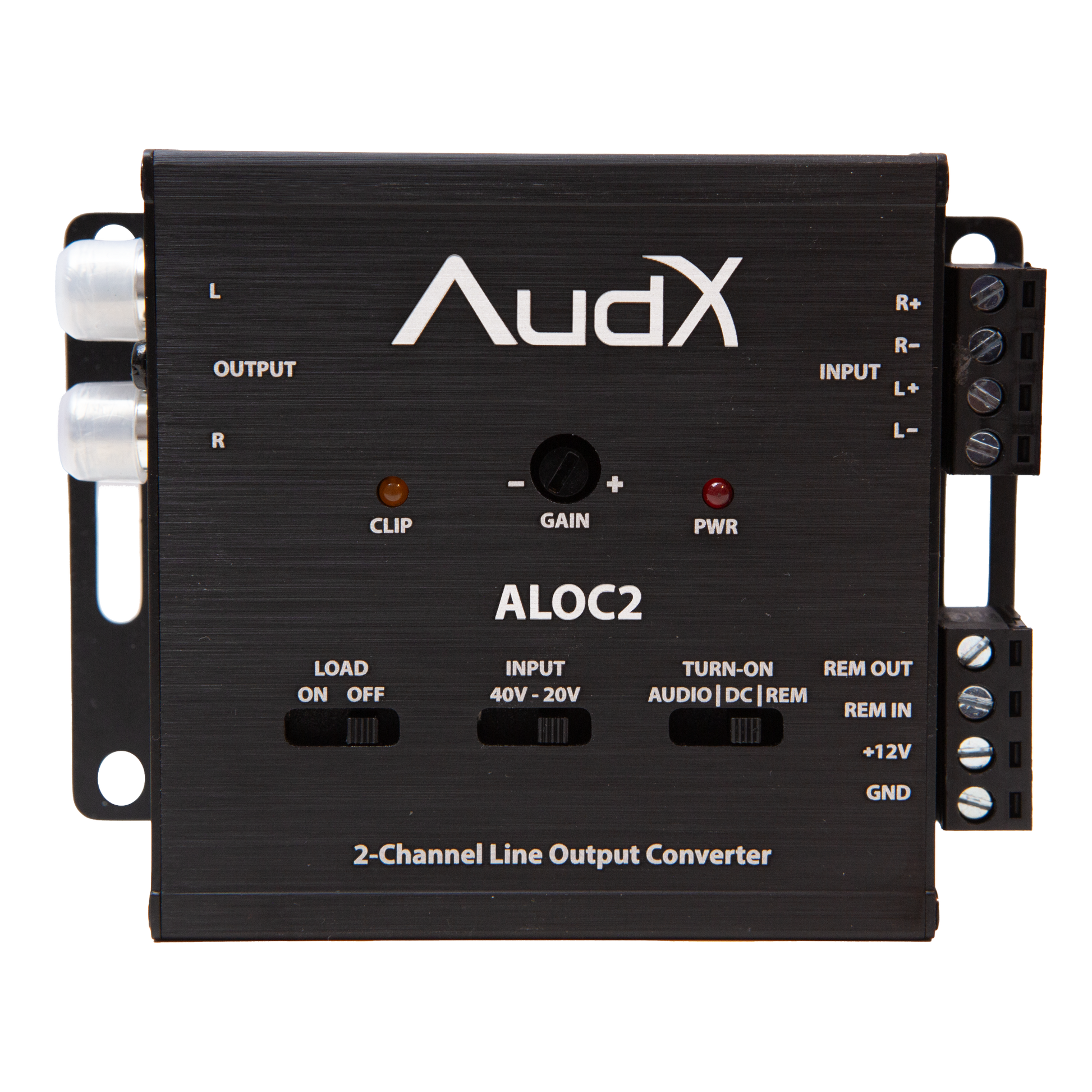

AudX ALOC2 2-Channel Line Output Converter

Upgrade your factory audio system with a clean, high-quality adjustable signal for an aftermarket amplifier. The AudX ALOC2 converts speaker-level outputs into low-level RCA outputs, making it an ideal interface for adding amplification while retaining the factory head unit.

Key Features

• 2-channel speaker-level to RCA line output converter
• Selectable 20V or 40V input range
• Adjustable output gain up to 10 Vrms
• Audio-sensing, DC-offset, or remote-wire turn-on options
• Selectable 40-ohm load for factory systems that require a speaker load
• Remote output for triggering an aftermarket amplifier
• Clip LED helps set gain for a clean signal
• Compact design: 3.937 x 3.07 x 1 in. (100 x 78 x 25.4 mm)

Built for Clean Integration

The ALOC2 is designed to connect to factory speaker outputs and deliver a high-quality RCA signal to your aftermarket amplifier. Its wide input range supports both standard and high-output factory amplified systems, while the adjustable gain and clip indicator help optimize output without unwanted distortion.

Choose the turn-on method that best suits your vehicle: audio signal detection, DC-offset detection, or a traditional remote turn-on wire. A built-in remote output can then activate your aftermarket amplifier.

Specifications

In the Box

• AudX ALOC2 line output converter
• Connection terminals
• Owner’s manual

Installation Note

Professional installation is recommended. Disconnect the vehicle battery’s negative terminal before wiring, and confirm all connections match your vehicle and amplifier requirements.
